MAIN FEATURES

v  Timing function

v  Support remote control, app control, voice control

v  Innovative silent system, minimum vibration and noise

v  During a power off, users may pull the curtains manually

v  When pulled gently, the curtain will run

v  433MHz wireless remote control

v  Stop automatically if met with resistance

v  Electronic memory limit in case of a power off

v  Soft start, soft stop

v  Support multiple motors to work together

v  Overheating protection system

v  Wired control (DryContact and WetContact) and Wireless or Zigbee control

v  Easy installation.

TECHNICAL DESCRIPTION

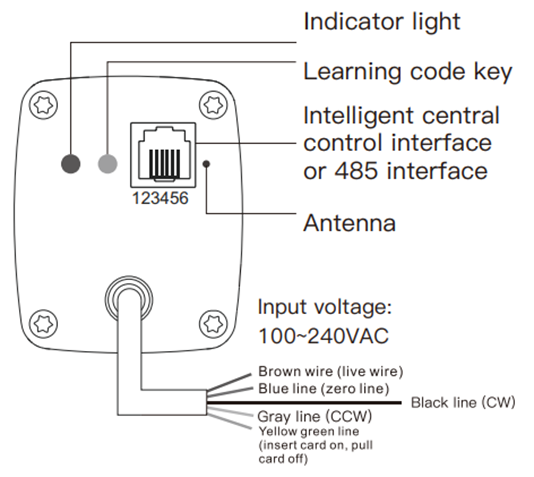

MOTOR WIRING DIAGRAM

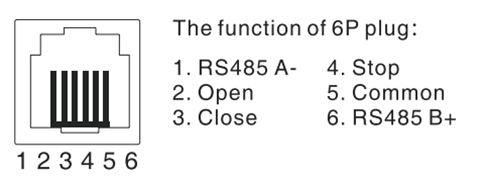

SMART CENTRAL VONTROL

v  The contact time of the dry contact mode is more than 0.5 seconds.

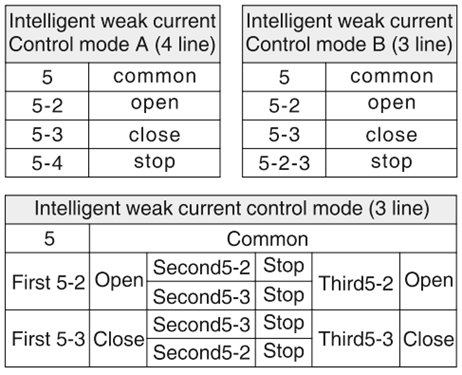

v  There are three dry contact control mode for you to choose, please specify when ordering.

MAINTENANCE AND PRECAUTIONS

v  The remaining unused electrical wires must be wrapped with electrical tape to avoid electric leakage.

v  The top environment of the installation track must be able to bear all the weight of the track, motor and curtain cloth.

v  The motor needs to be installed near the end of the power supply

v  Please install the electric opening and closing curtain system horizontally, not vertically or in uneven places.

v  Do not allow children to operate alone, so as not to drag the curtain hard and cause accidents.
