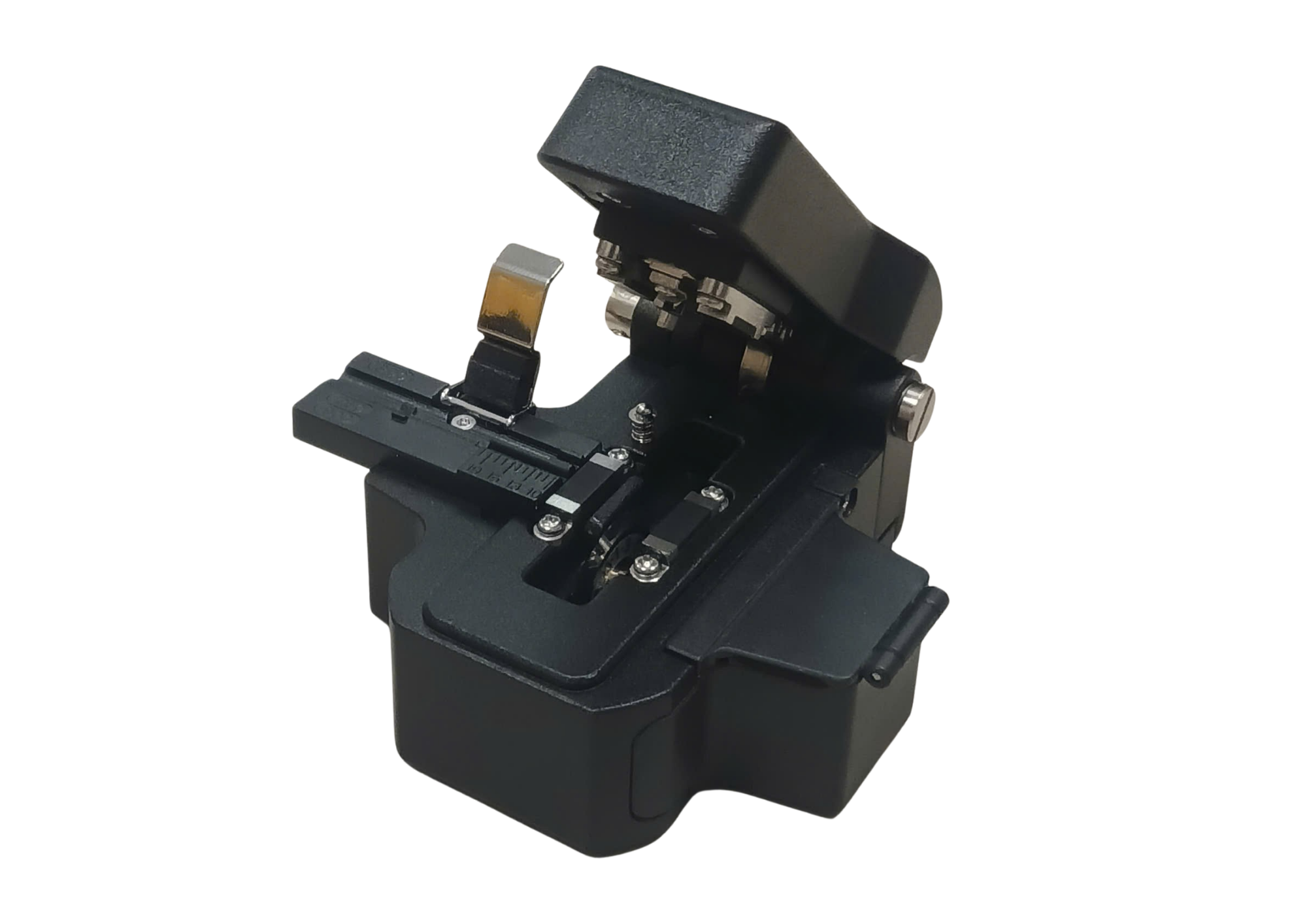

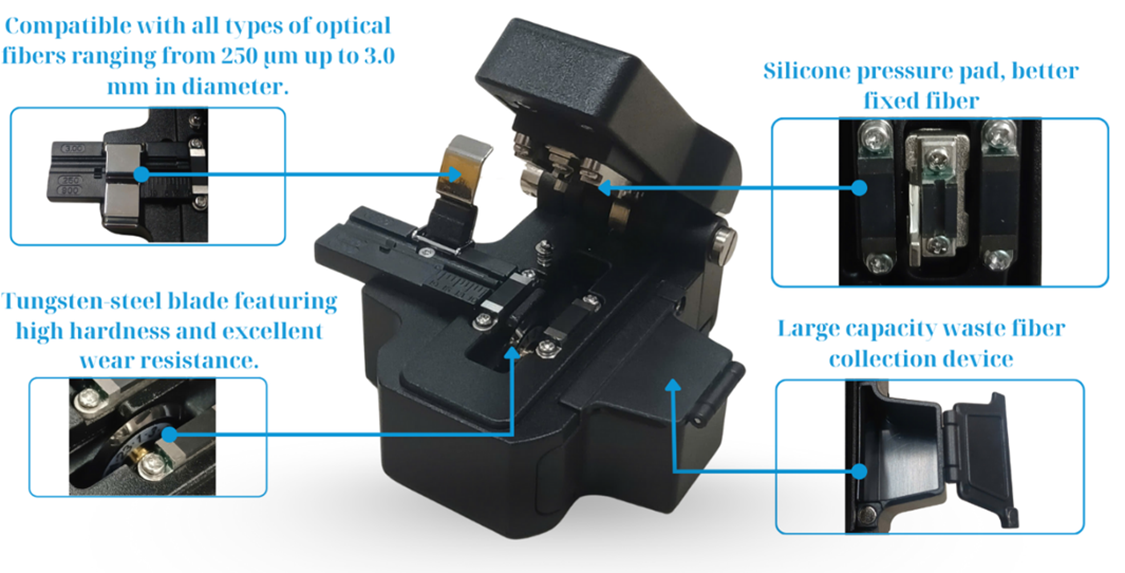

The Fiber Optic Cleaver GTS-1A is thoughtfully engineered for convenience. You won’t need to push any slide rails during operation, and it completes fiber cutting in just a single step. When it’s time to rotate the blade, that too requires only one quick action. Built from durable solid alloy, the GTS-1A is compact, lightweight, and easy to handle with one hand-an ideal companion for outdoor tasks.
Specifications
Items | Specifications |
Model | GTS-1A |
Fiber Type | SM/ MM mode |
Operation | One-step |
Cladding Diameter | 125μm |
Cleaved Length | 10~20mm |
Blade Life | 54000cleaves |
Weight | ≈230g |
Dimension | 87(W)*74(D)*49(H)mm |
Cleaved Angle | Avg. 0.3 to 0.5 degrees |
Operation Condition | Temperature: -10~50°C/ Humidity: 0~95%RH(Non-condensing) |
Storage Condition | Temperature: -40~80°C/ Humidity: 0~95%RH(Non-condensing) |
