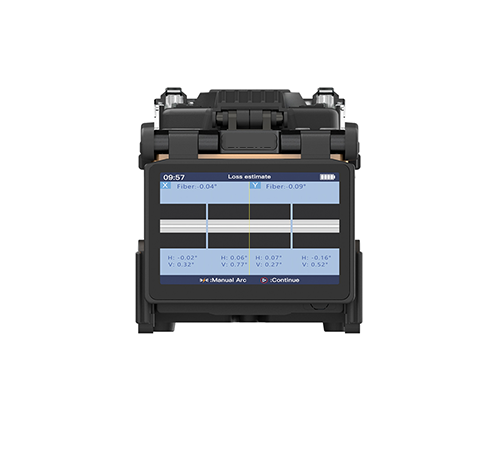

The GTS-J6C is a 6-motor Core Alignment fusion splicer designed for Backbone optical fiber networks. Its 6-motor alignment system provides precise fiber core alignment for stable, low-loss splicing. It supports SM, MM, DS, and NZDS fibers, meeting various fiber network requirements. With 6-second splicing and 16-second heating, it delivers fast and efficient field operation. GTS-J6C Precise, Reliable, and Efficient Fusion Splicing for Backbone Networks.
Features
•6-motor core alignment for precise and stable fiber splicing.
•5-inch 800 × 480 HD color display for clear fiber observation.
•320× magnification for accurate fiber inspection and alignment.
•6-second splicing and 16-second heating for efficient field operation.
•Average splicing loss as low as 0.01 dB for reliable fiber connections.
•3-in-1 fiber holder compatible with multiple fiber and cable types.
•5200mAh battery capacity supporting up to 260 splice-and-heat cycles.
•Storage capacity for up to 10,000 splice records and 2,000 result images.
Specifications
Model | GTS-J6C |
Splice Method | Core Alignment |
Applicable Fibers | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
Compatible Fiber/Cable | 0.25~3.0 mm / indoor cable |
Fiber Holder | Replaceable (Universal: FH-60, SOC Holder: FH-SOC(optional)) |
Fiber Diameter | Cladding: 80-150μm，Coating: 100~1000μm |
Fiber Cleave Length | 8~16 mm |
Splice mode | Max 128 modes |
Typical Splice Loss | SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB ★① |
Return Loss | >>60dB |
Splicing Time | SM Quick mode : 6 sec / SM Average: 16 Sec. |
Heating Time | Quick mode 16 sec.(SM G652 250μm 40mm Sleeve) adjustable |
Protection Sleeve Length | 20mm, 30mm, 40mm, 50mm, 60mm |
Heat Programs | Max 32 modes |
Battery | 5200mAh Battery Capacity, Typical 260 Cycles (Splice&Heat) per Charge ★② |
Electrode Life | 5000 arcs, can be extended by using an electrode grinder ★③ |
Auto-start | Splice / Heating |
Results Storage | The last 10,000 splice records and 2,000 result images |
Tension Test | 1.96~2.25N |
Operating Condition | Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s |
Storage Condition | 0~95% relative humidity, -20~60°C |
Display | 5.0”color high resolution (800 x 480) display |
Fiber Magnification | X, Y, XY, X/Y : 320X Magnification |
Power Supply | lmport AC:AC100-240V~50/60HZ,Export DC:DC14.0V/4.0A |
Terminal | USB2.0 |
Weight | 1.6kg without battery / 1.9kg with battery |
Size | 138H x 160W x 150D mm (including rubber bumper) |
Splice Method | Core Alignment |
