Introduction

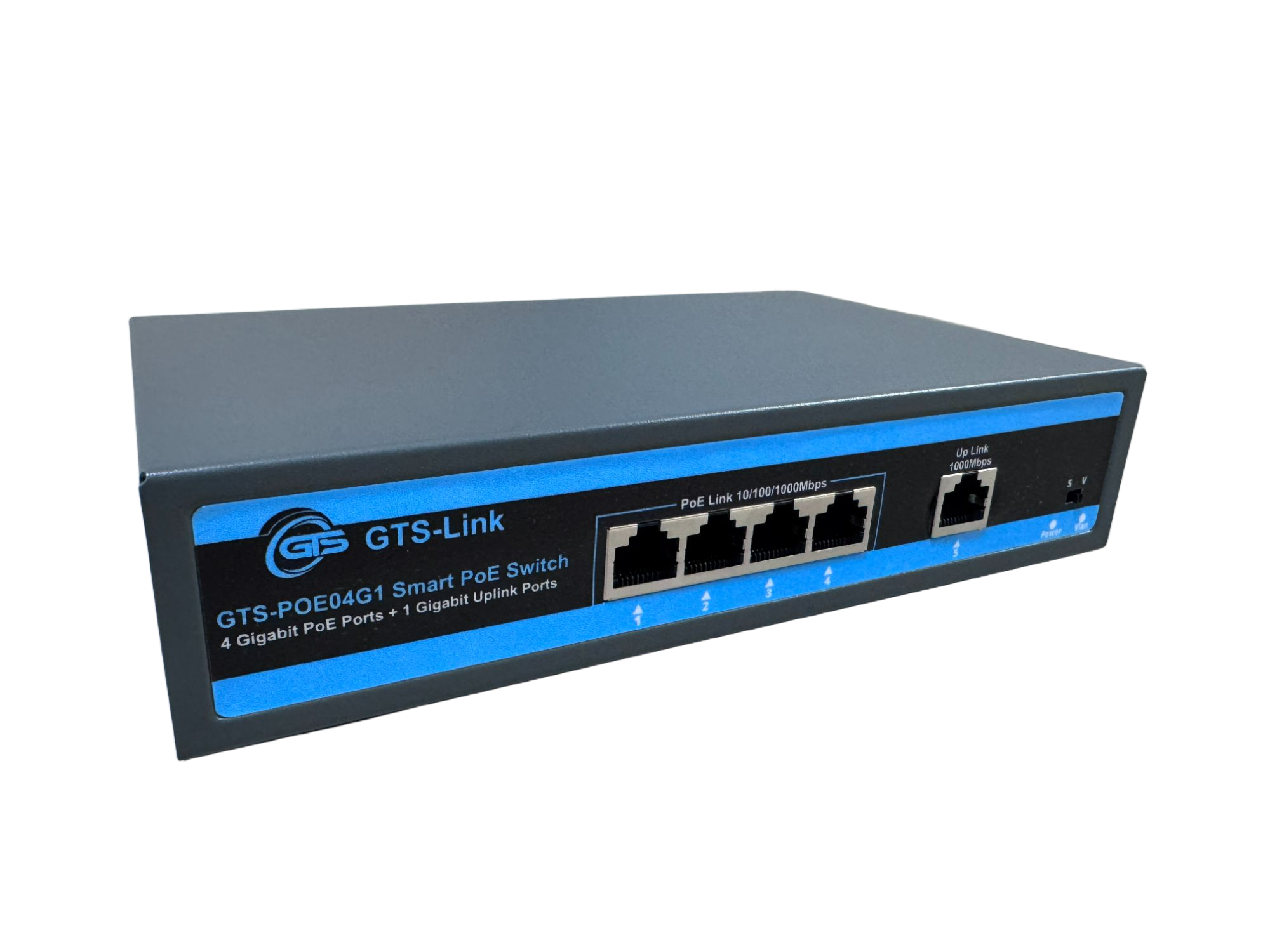

The GTS-POE04G1 PoE Switch is a high-performance network device designed to provide both data transmission and Power over Ethernet (PoE+) for connected devices. Equipped with the latest high-speed Ethernet switching chipset, it offers ultra-high backplane bandwidth, ensuring smooth, stable, and fast data transfer. It is suitable for applications such as IP camera, VoIP and wireless access point deployments.
Features
· 4*Gigabit PoE+ ports and 1*Gigabit uplink
· IEEE 802.3af/at compliant, 30W/port, 78W total
· AI Watchdog – auto reboot PoE devices when unresponsive (Option)
· VLAN & Extend modes – PoE port isolation, up to 250m transmission
· Intelligent PoE – auto-detect PD devices with power priority mechanism
· Built-in surge protection for reliable operation
· Switching capacity: 12Gbps, MAC table: 2K
· Supports IEEE802.3X full-duplex, backpressure for half-duplex
· Auto-negotiation & MDI/MDIX auto-flip on all ports
· Unmanaged mode, plug and play, no configuration, easy to use.
Specifications
Model | GTS-POE04G1 |
Ports | 4 × 10/100/1000Mbps RJ45 PoE+ ports, 1 × 10/100/1000Mbps RJ45 uplink port |
Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
PoE Standard | IEEE 802.3af/at |
PoE Power | Max. 30W per port, total 78W |
PoE Output Voltage | DC 52V ±5% |
PoE Pins | 1/2(+), 3/6(-) |
Switching Capacity | 12Gbps |
MAC Address Table | 2K |
Forwarding Mode | Store and forward |
Forwarding Rate | 10BASE-T: 14,880pps/port |
Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode |

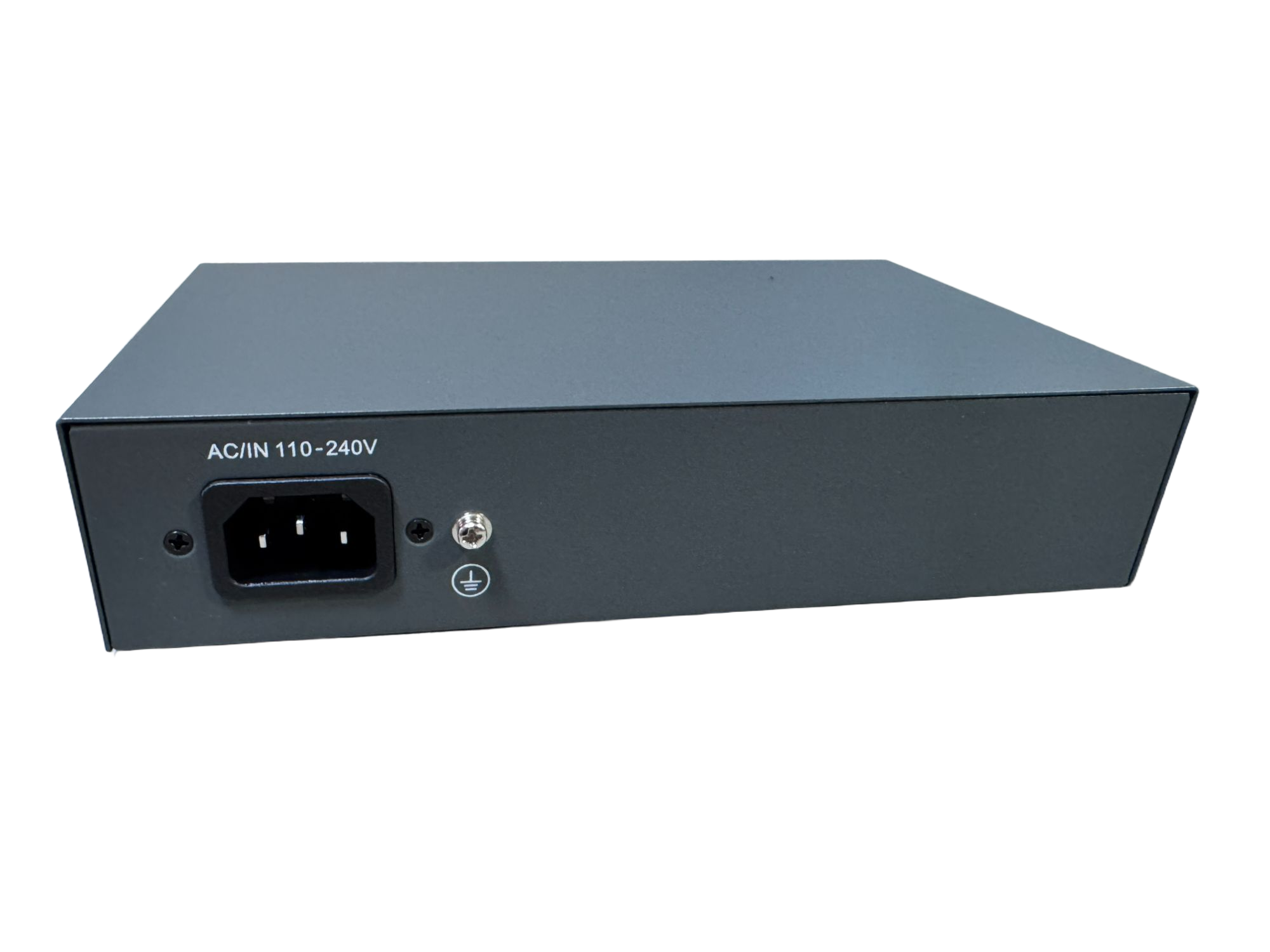

Power Supply | 110–240VAC 50/60Hz input, |
Power Consumption | ≤78W |
Transmission Distance | Up to 100m (standard), 250m (Extend mode at 10Mbps) |
Environment | Operating Temperature：-20°C to 55°C |
Lightning Protection | Up to 6KV 8/20us, Protection level: IP30 |
Certification | UL60950 / EN60950 / IEC60950 |
Weight | 0.6 kg |
Dimensions (L×W×H) | 200mmx118mmx44mm |
