Introduction

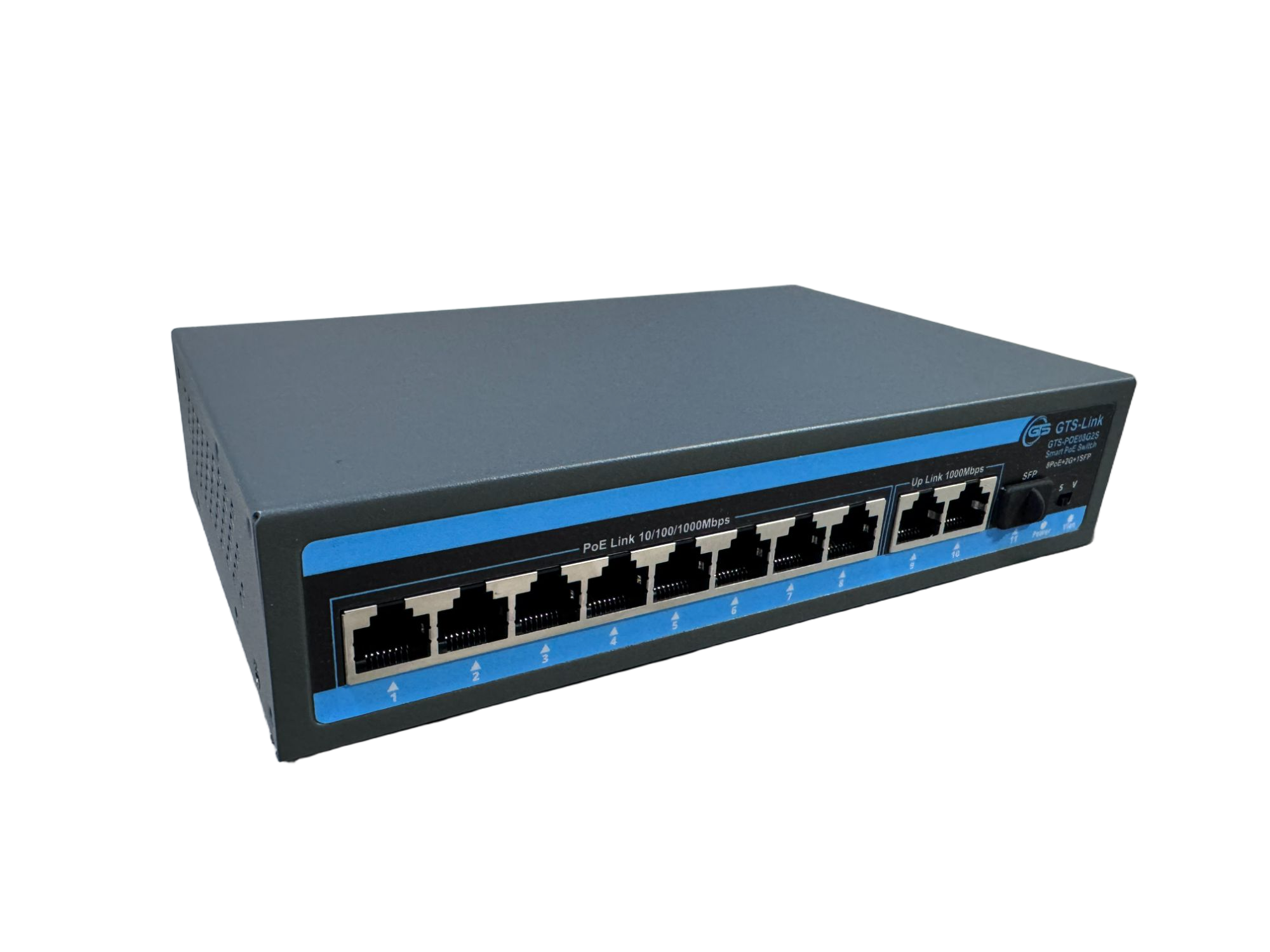

The GTS-POE08G2S PoE Switch provides 8 × 1000Mbps PoE+ ports, 2 × 1000Mbps uplink ports, and 1 × SFP port. It supports IEEE 802.3af/at standards, featuring an AI watchdog function for PoE camera drop detection with automatic power-off and restart. It offers two operating modes (Standard, VLAN + Extend) with a total PoE power budget of 120W.
Features
· 8*Gigabit PoE+ ports + 2*Gigabit uplink + 1*SFP uplink
· IEEE 802.3af/at compliant, 30W/port, 120W total
· AI Watchdog – auto reboot PoE devices when unresponsive (Option)
· VLAN & Extend modes – PoE port isolation, up to 250m transmission
· Intelligent PoE – auto-detect PD devices with power priority mechanism
· Built-in surge protection for reliable operation
· Switching capacity: 12Gbps, MAC table: 2K
· Supports IEEE802.3X full-duplex, backpressure for half-duplex
· Auto-negotiation & MDI/MDIX auto-flip on all ports
· Flexible fiber uplink with SFP slot
· Unmanaged mode, plug and play, no configuration, easy to use.
Specifications
Model | GTS-POE08G2S |
Ports | 8 × 1000Mbps PoE+ ports, 2 × 1000Mbps uplink ports, 1 × SFP |
Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
PoE Standard | IEEE 802.3af/at |
PoE Power Output | ≤30W per port, total ≤120W |
PoE Output Voltage | DC 52V ±5% |
PoE Pins | 1/2(+), 3/6(-) |
Switching Capacity | 12Gbps |
MAC Address Table | 2K |
Forwarding Mode | Store and forward |
Forwarding Rate | 10BASE-T: 14,880pps/port; 100BASE-TX: 148,800pps/port; |
Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |

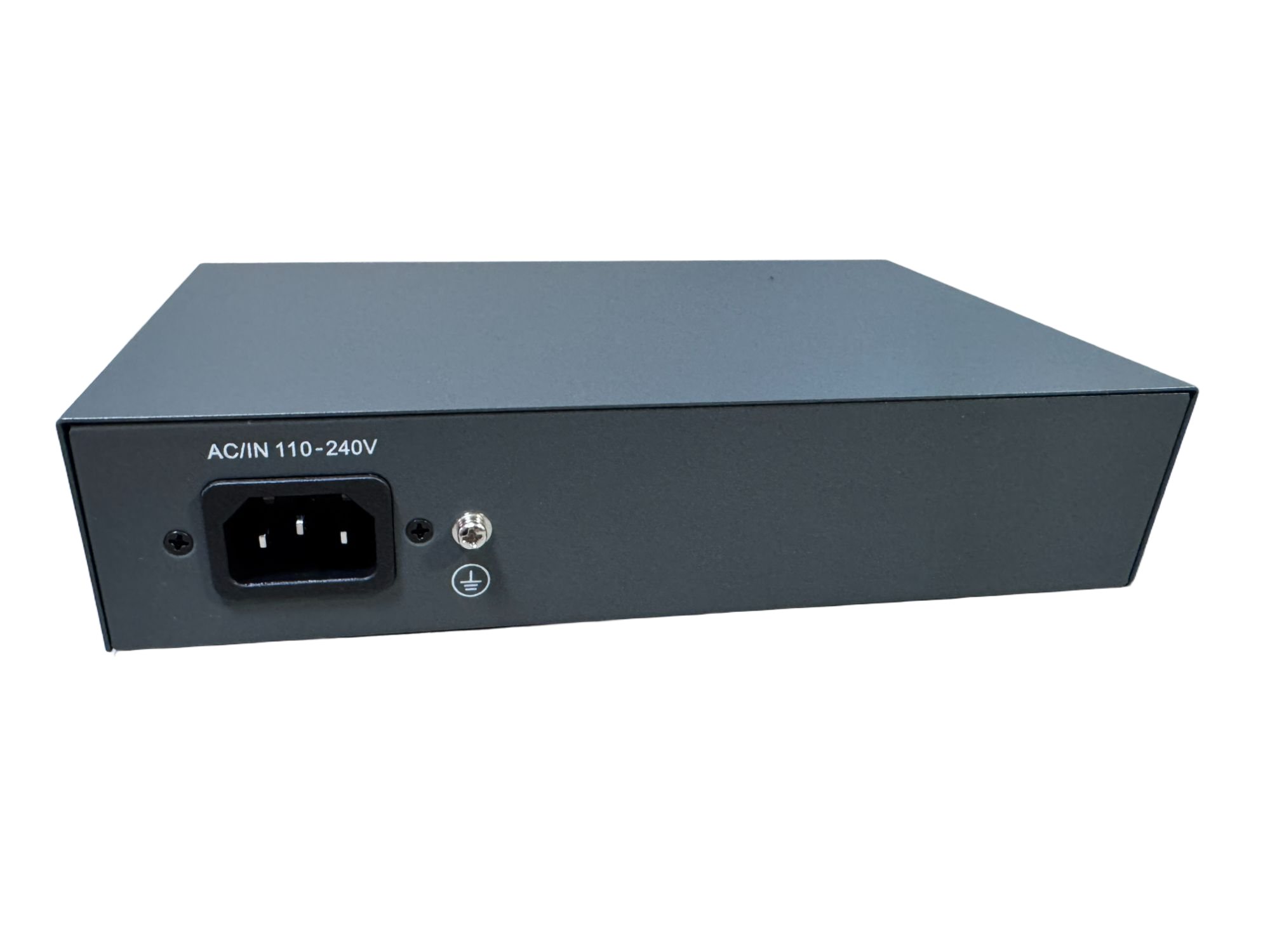

Input Voltage | 110–240VAC 50/60Hz |
Power Consumption | ≤120W |
Transmission Distance | Up to 100m (standard), 250m (Extend mode at 10Mbps) |
Environment | Operating Temperature: -20°C to 55°C |
Lightning Protection | Up to 6KV 8/20us, Protection level: IP30 |
Certification | UL60950 / EN60950 / IEC60950 |
Weight | 0.7 kg |
Size (L×W×H) | 200mm x118mm x 44mm |
