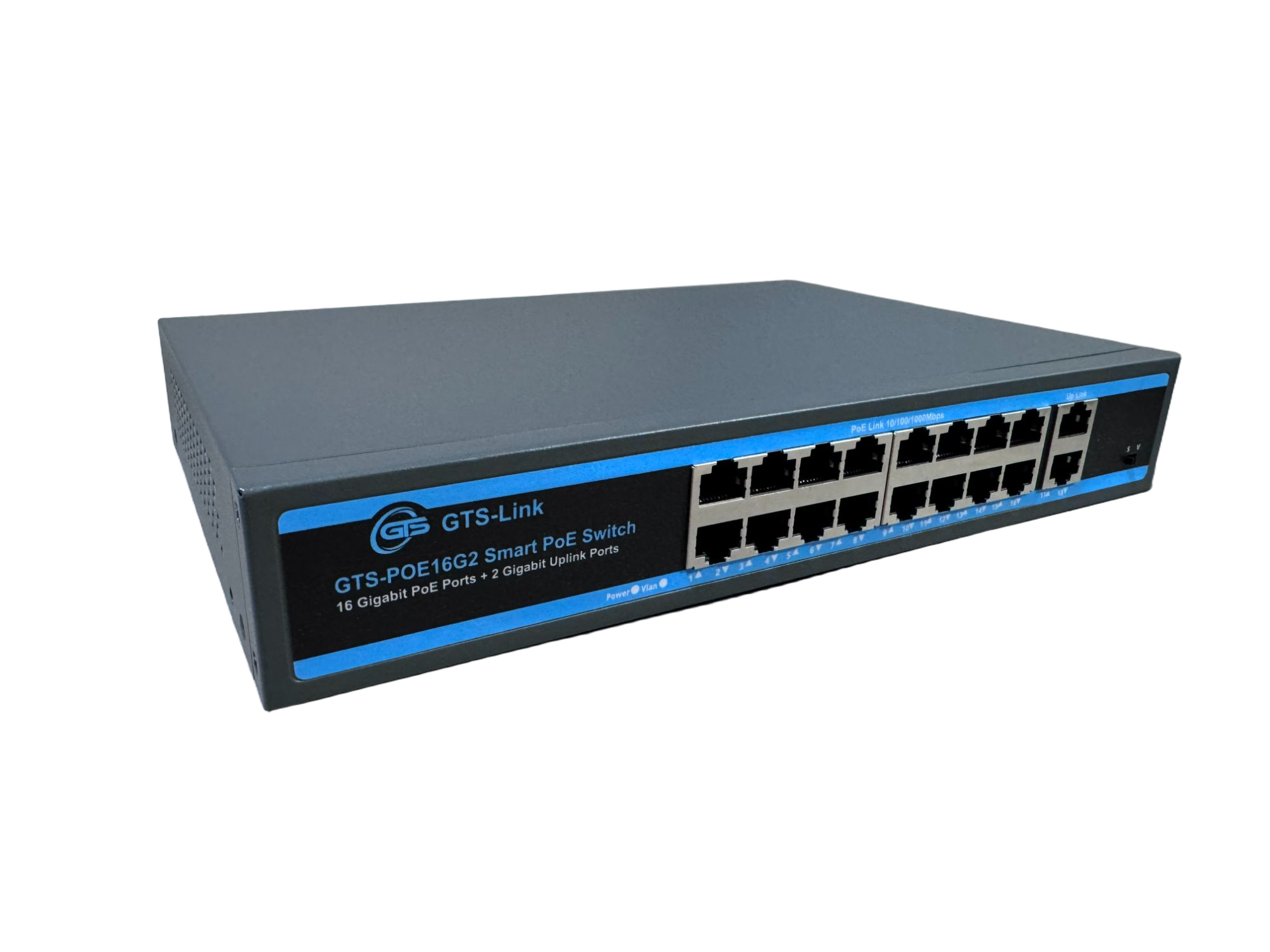

GTS-POE16G2 Smart PoE Switch-Global Trading Service

Details

Introduction

· 16*Gigabit PoE+ ports + 2*Gigabit uplink

· IEEE 802.3af/at compliant, 30W/port, 250W total

· AI Watchdog – auto reboot PoE devices when unresponsive (Option)

· VLAN & Extend modes – PoE port isolation, up to 250m transmission

· Intelligent PoE – auto-detect PD devices with power priority mechanism

· Built-in surge protection for reliable operation

· Switching capacity: 16Gbps, MAC table: 4K

· Supports IEEE802.3X full-duplex, backpressure for half-duplex

· Auto-negotiation & MDI/MDIX auto-flip on all ports

· Unmanaged mode, plug and play, no configuration, easy to use.

Model	GTS-POE16G2
Ports	16 × RJ45 10/100/1000Mbps PoE+ ports, 2 × RJ45 10/100/1000Mbps uplink port
Network Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af/at
PoE Standard	IEEE 802.3af/at
PoE Power Output	≤30W per port, total ≤250W
PoE Output Voltage	DC 52V ±5%
PoE Pins	1/2(+), 3/6(-)
Switching Capacity	16Gbps
MAC Address Table	4K
Forwarding Mode	Store and forward
Forwarding Rate	10BASE-T: 14,880pps/port; 100BASE-TX: 148,800pps/port; 1000BASE-T: 1,488,000pps/port
Port Function	Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode

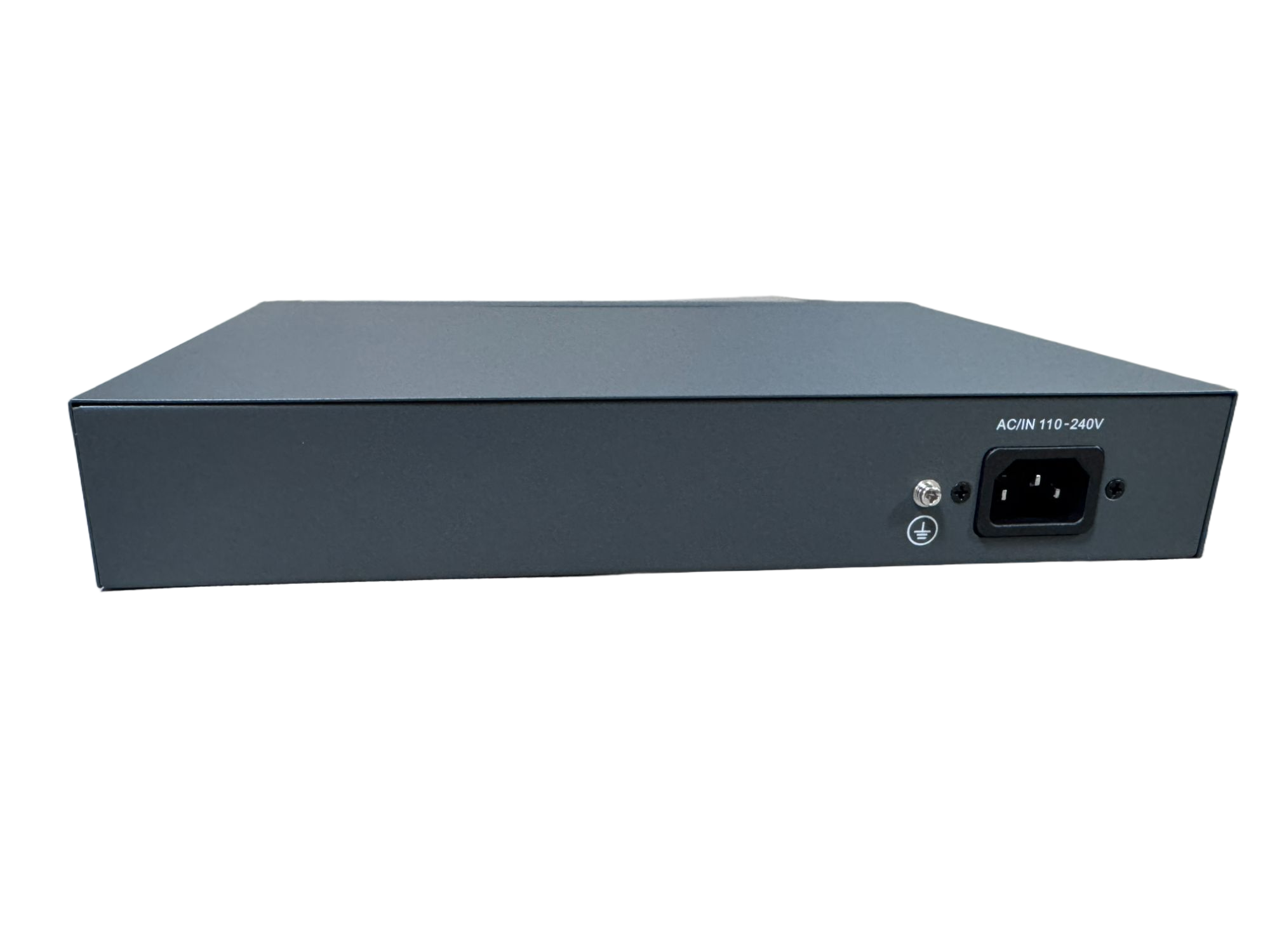

Input Voltage	110–240Vac 50/60Hz Output: DC52V ±5%, 4.8A
Power Consumption	≤250W
Transmission Distance	Up to 100m (standard), 250m (Extend mode at 10Mbps)
Environment	Operating Temperature: -20°C to 55°C Storage Temperature : -40°C to 85°C Humidity: 5%–90% RH (non-condensing)
Lightning Protection	Up to 6KV 8/20us, Protection level: IP30
Certification	UL60950 / EN60950 / IEC60950 FCC Part 15 Class B, CE, RoHS
Weight	1.5 kg
Size (L×W×H)	270mm×180mm×44 mm
