OVERVIEW

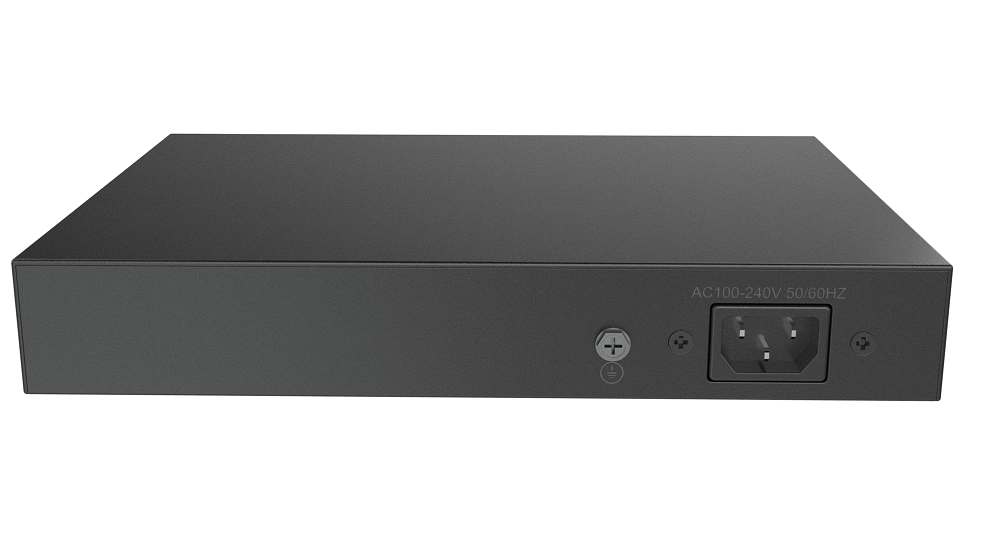

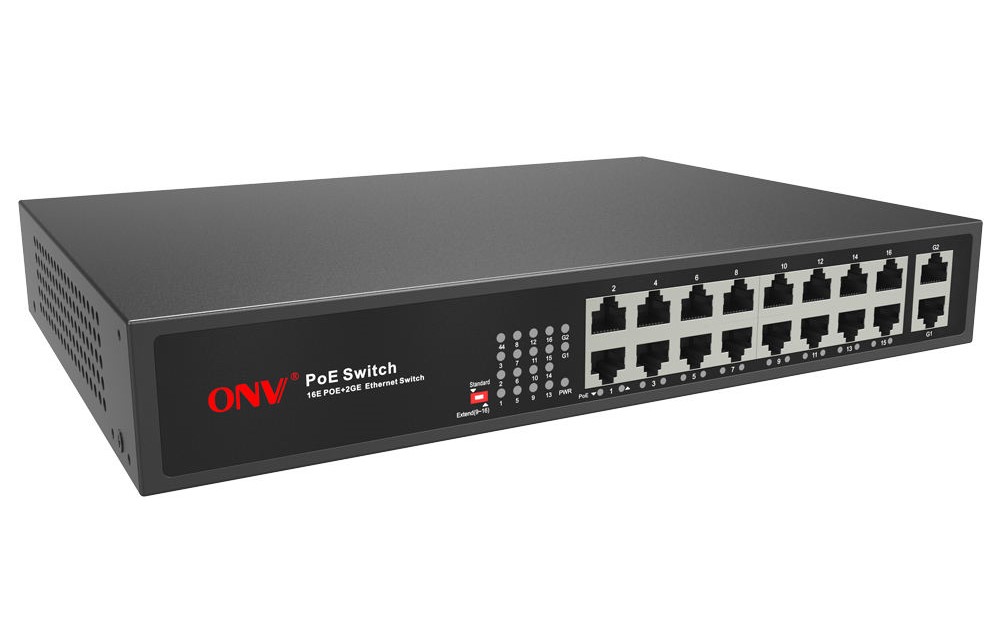

The ONV-POE31016PL is an unmanaged PoE switch independently developed by ONV. It has 16*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports. Port 1-16 can support IEEE802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 250W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises. Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
10/100Mbps access, gigabit uplink
◇ All series supports "10/100M RJ45 port and 10/100/1000M RJ45 port" combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Smart PoE power supply function
◇ 16*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Innovative function
◇ Long distance switch: When opening, the speed of 9-16 port is reduced to 10M. With the existing twisted pair cable, the transmission limit of the twisted pair can be broken. The transmission distance can reach 250 meters, on the other hand, It can solve the problem of poor transmission caused by line aging.
Stable and reliable
◇ CCC,CE, FCC, RoHS.
◇ Support desktop and 1U/19 inch cabinet installation.
◇ Plug and play, no configuration, simple and convenient.
◇ Low power consumption, galvanized steel casing, The fan active cooling.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, PoE.
SPECIFICATION
| Model | ONV-POE31016PL |
| Interface Characteristics | |
| Fixed Port | 16*10/100Base-TX PoE ports (Data/Power) 2*10/100/1000Base-T Uplink RJ45 ports (Data) |
| Functional Switch | After opening, port 9-16 support 10M/250 meters long distance transmission. |
| Note: When the switch status changes, the PoE switch must be restarted for the switch function to take effect. | |
| Ethernet Port | 10/100Base-T(X) ,10/100/1000Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive |
| Twisted PairTransmission | 10BASE-T:Cat5 UTP(≤250 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or later UTP(≤100 meter) |
| Chip Parameter | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-TIEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 14.8Gbps(non-blocking) |
| ForwardingRate@64byte | 5.36Mpps |
| MAC | 16K |
| Buffer Memory | 4M |
| Jumbo Frame | 10K |
| LED Indicator | Power: PWR (green), Network : 1-16(24)/G1-2 (green), POE: PoE(green) |
| Reset Switch | Yes, One-button factory reset |
| PoE & Power Supply | |
| PoE Port | Port 1 to 16 |
| Power Supply Pin | Default 1/2 (+), 3/6 (-), Optional 4/5(+), 7/8(-) |
| Max Power Per Port | 30W; IEEE802.3af/at |
| Total PWR / Input Voltage | 250W (100-240V) |
| Power Consumption | Standby<15W,Full load<240W |
| Power Supply | Built-in switching power supply, AC 100 ~ 240V 50-60Hz 4.1A, support short circuit, over current, overload protection |
| Physical Parameter | |
| Operation TEMP / Humidity | -20~+55°C, 5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40~+75°C, 5%~95% RH Non condensing |
| Dimension (L*W*H) | 270*181*44.5mm |
| Weight | 1.7kg |
| Installation | Desktop, wall mounted,19 inch 1U cabinet |
