OVERVIEW

The ONV-POE31008PLD is an unmanaged AI PoE switch. It has 9*10/100Base-TX RJ45 ports Port 1-8 can support IEEE 802.3 af/at PoE standard. Single-port PoE power reaches 30W, and the max PoE output power is 110W. Port 1-8 can support the PoE watchdog function. When the port communication failure corresponds to the port POE will automatically restart, self-recover network communication, reducing manual intervention and maintenance. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, IP camera, VoIP, video access control, etc. Through the network cable, to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, parks, banks, hospitals, factories, and small and medium-sized enterprises to form a cost-effective network. Unmanaged mode, plug, and play, no configuration, easy to use.

FEATURE

 10/100Mbps Ethernet access
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ 9*10/100Base-TX RJ45 ports allow users to flexibly network to meet the networking requirements of various scenarios.
 Intelligent PoE power supply
◇ 8*10/100Base-TX PoE ports can support the PoE watchdog function, real-time detection of data communication status.
◇ 8*10/100Base-TX PoE ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ Comply with PoE standard, automatically identify PoE devices for power without damaging non-PoE devices, and the single port max PoE output power is 30W.
 Innovative function
◇ AI PoE watchdog mode (D): When the switch status is “ON” (default OFF), port 1-8 can support the watchdog function and automatically detects the data communication status in real-time.

◇ Real-time power and power priority mode (P): When the switch status is "ON" (default OFF), the POE real-time power grading indicator lights up, quickly understanding the power consumption of the host, and enabling the port priority function to ensure the port 1 power output.

◇ long-distance transmission and VLAN mode (E): When the switch status is “ON” (default OFF), Port 1-8 rate is 10M/250m transmission, the port physical VLAN isolated, broadcast storm, the transmission distance can up to 250m, solve the problem of poor transmission caused by line aging.

 Stable and reliable
◇ CCC,CE, FCC, RoHS

◇ Plug and play, no configuration, easy to maintain.
◇ Low power consumption and low noise, with fan, galvanized steel shell.

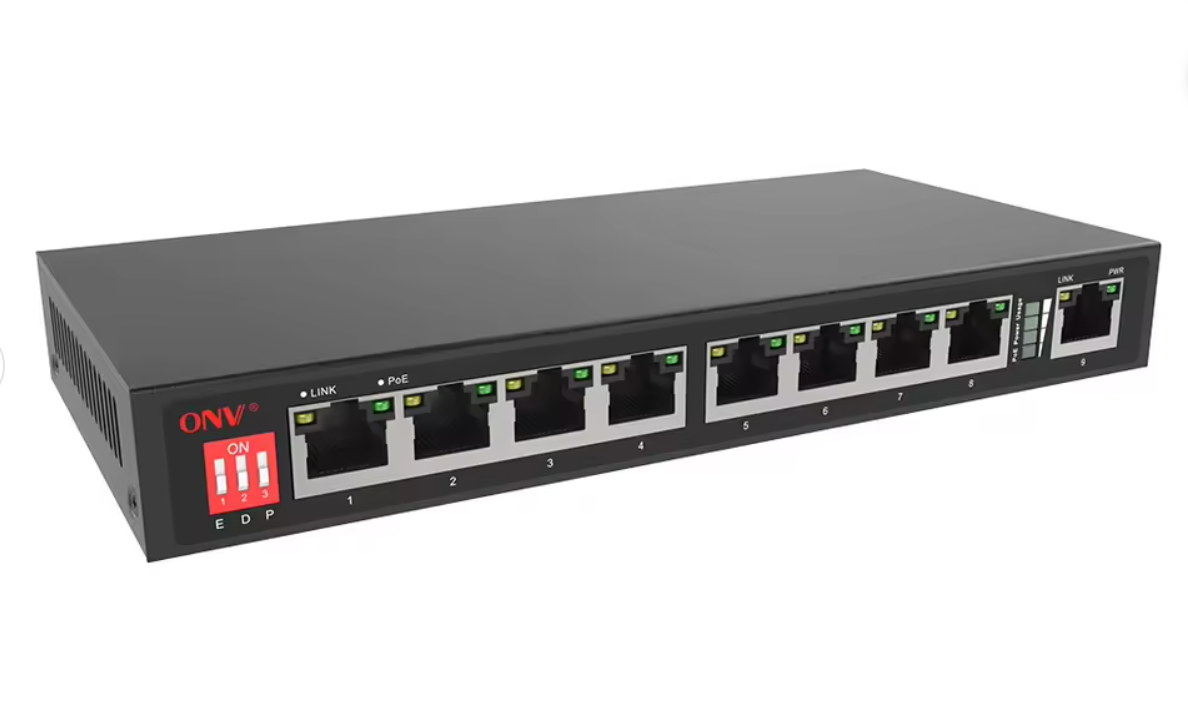

◇ The user-friendly panel can show the device status through the LED indicator of P, Link, PoE.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
